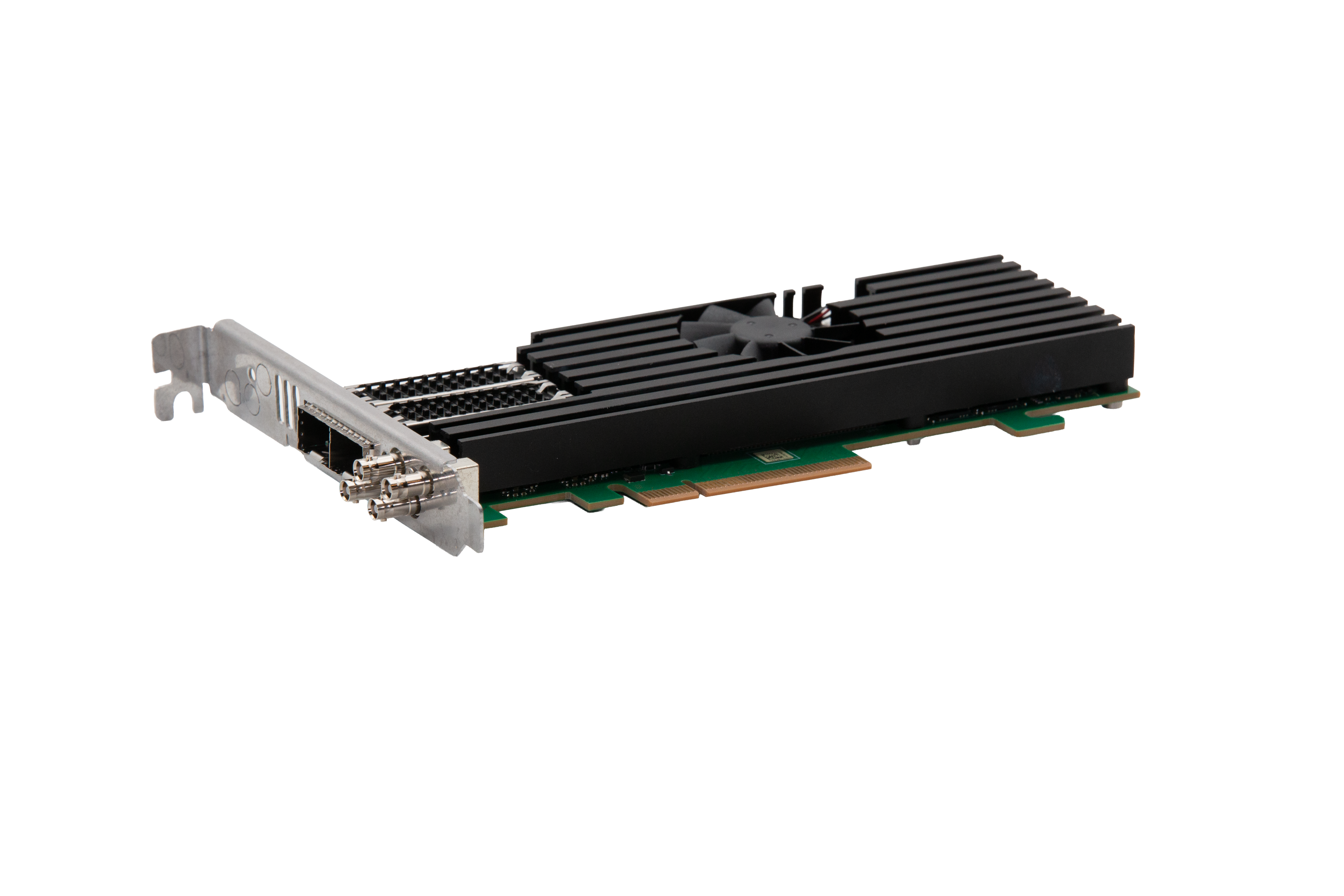

DELTA-IP25-44-SDI-4c-elp

DELTA-IP25-44-SDI-4c-elp

25GbE ST 2110 and 12G-SDI I/O board

DELTA-IP25-44-SDI-4c-elp is a compact, high-performance I/O board that bridges SDI and IP video workflows.

It combines one redundant 25GbE port with SMPTE ST 2110 transmit/receive capabilities, alongside four bidirectional 12G-SDI ports that can be independently configured as inputs or outputs.

Designed for SDI-to-IP migration and hybrid broadcast environments, the board enables seamless interoperability between traditional SDI infrastructures and next-generation IP networks.

Powered by the universal VideoMaster SDK, DELTA-IP25-44-SDI-4c-elp provides a unified transport abstraction layer, simplifying application development and accelerating the deployment of SDI/IP hybrid solutions and future-proof video products.

DELTA‑IP25-44-SDI-4c‑elp offers advanced capabilities condensed in a half-length and low-profile PCI Express form factor. It allows operating up to four simultaneous 1080p SDI channels as well as up to four 1080p inputs and four 1080p outputs in IP.

For UHD productions, it seamlessly handles resolutions up to 4K60 in both SDI and IP domains.

DELTA‑IP25-44-SDI-4c‑elp also features hardware PTP synchronization as well as in-band and out-of-band NMOS support for straightforward integration in broadcast and professional AVoIP infrastructures.
