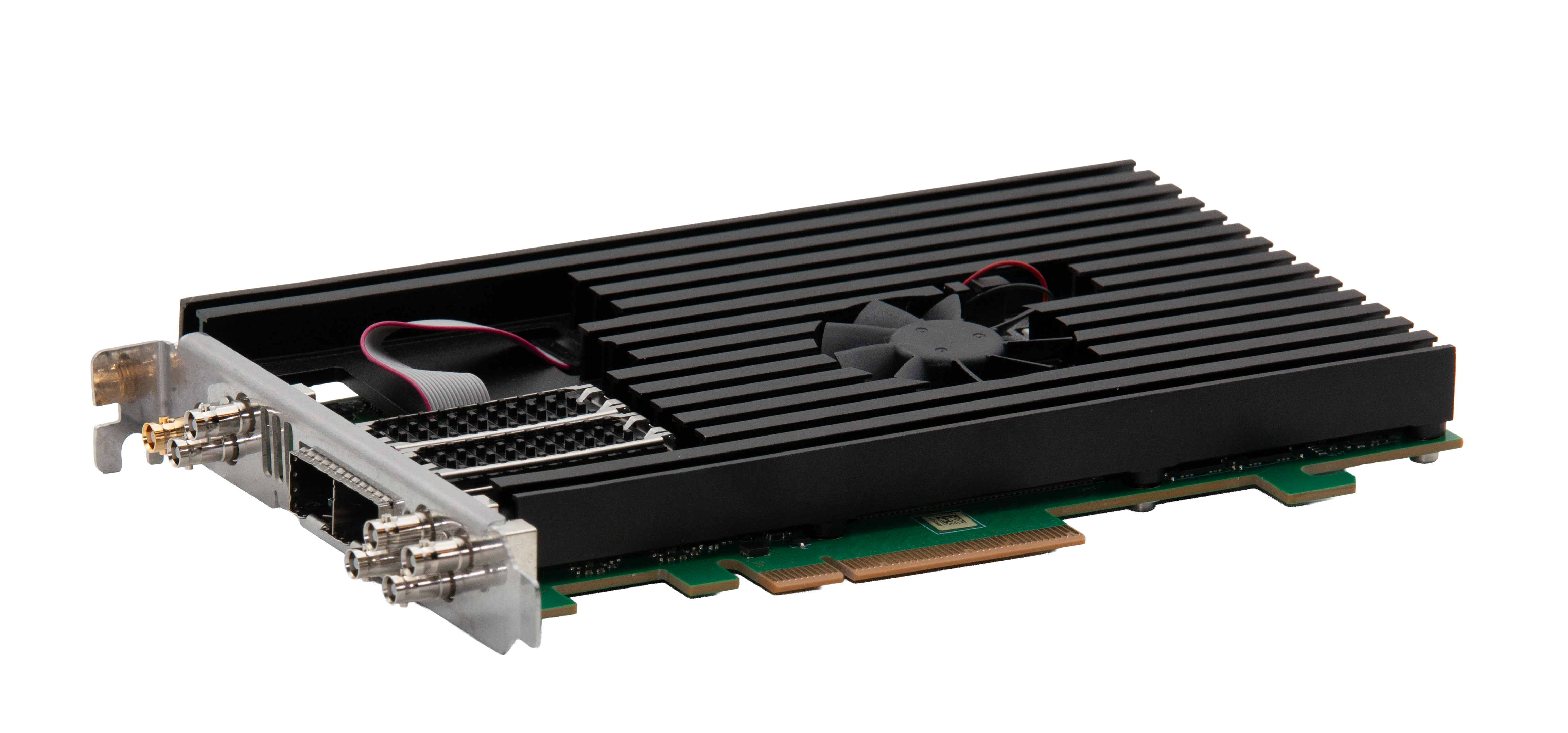

DELTA-IP25-44-SDI-4c-e

DELTA-IP25-44-SDI-4c-e

25GbE ST 2110 and 12G-SDI I/O board

DELTA-IP25-44-SDI-4c-e is a comprehensive and high-performance I/O board designed to seamlessly bridge SDI and IP video workflows.

Combining one redundant 25GbE port with SMPTE ST 2110 transmit/receive capabilities, four bidirectional 12G-SDI ports independently configurable as inputs or outputs, and dedicated genlock and LTC synchronization interfaces, DELTA-IP25-44-SDI-4c-e delivers a complete video solution on a single add-in card.

Designed for SDI-to-IP migration and hybrid broadcast environments, the board enables smooth interoperability between traditional SDI infrastructures and next-generation IP networks.

Powered by the universal VideoMaster SDK, DELTA-IP25-44-SDI-4c-e provides a unified transport abstraction layer, simplifying application development and accelerating the deployment of SDI/IP hybrid solutions and future-proof video products.

DELTA IP25-44-SDI-4c e offers a fully comprehensive baseband and IP toolset packed in a half-length and full-height PCI Express form factor. It allows operating up to four simultaneous 1080p SDI channels as well as up to four 1080p inputs and four 1080p outputs in IP.
For UHD productions, it seamlessly handles resolutions up to 4K60 in both SDI and IP domains.

In terms of synchronization capabilities, DELTA IP25-44-SDI-4c e includes one analog genlock input, one genlock output, and one LTC input, as well as hardware PTP synchronization.
Its in-band and out-of-band NMOS support allows straightforward integration in broadcast and professional AVoIP infrastructures.
