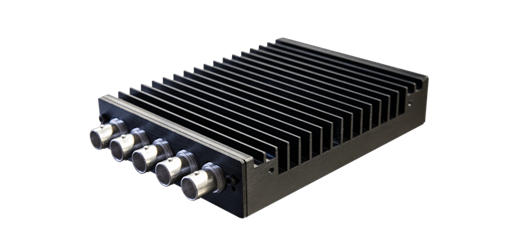

Compact versatile 4-channel SDI capture module

Innovative solution for multi-channel SDI capture in a compact from factor.
The FLEX-3g 40  hosts four independent SDI input channels that supports formats from SD (PAL, NTSC) to 3G-SDI (1080p). The channels can be combined together to capture 4K pictures at up to 60p without any compromise (10-bit, Square Division or 2-Sample Interleave). This module works in combination with a DELTA-GWY 316-8 host PCIe card and up to seven other modules (SDI, HDMI, DisplayPort), proving a total of up to 32 SDI interface, or a mix of 8x 4K channels over SDI, HDMi or DisplayPort.

With such a versatility and cutting-edge performances while still fitting in a very compact form factor, the FLEX-3g 40 is the ideal solution for high-end multi-channel applications including encoders, media servers, GPU-based CG, and many other products with support for the most recent 4K standards.

Specifications

Hardware features
Bus Interface Proprietary
Form Factor Flex module 2M : 116x94x21 mm
Connectors BNC 75 Ohm
Sync Input No
Serial numbering 64-bit unique ID per module
LTC Input Analog LTC (ST12-1) timecode capture
Hardware Processing
Video Signal Modes Single-link 4:2:2 10-bit
Scalers No
CSC No
Video Interfaces
Video Interfaces 3Gbps SDI (ST 424) Level A and Level B-DL (ST 425-1)
Quad Link 3G-SDI (ST 425-5)
HD-SDI (ST 292)
SD-SDI (ST 259)
Video Formats o SD : 625i50 (PAL), 525i59.94 (NTSC)

o HD 1280x720 : 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98

o HD 1920x1080 : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60 A/B, 1080p59.94 A/B, 1080p50 A/B, 1080p60, 1080p59.94, 1080p50.

o 2K 2048x1080 : 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.952

o 4K 3840x2160 or 4096x2160, in 8 or 10-bit, 2 Sample Interleave or Square Division : 2160p60, 2160p59.94, 2160p50, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
Audio formats
Ancillary data ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed captions)
