Compact versatile 12G SDI card

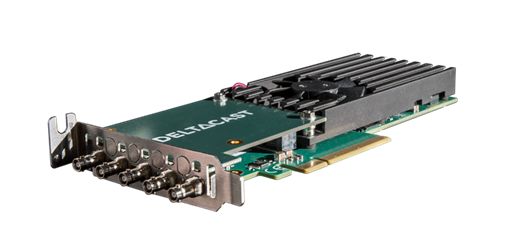

Innovative solution for 12G SDI capture and playout in a compact from factor. The DELTA-12G-elp-h 1c hosts four independent channels that can be used either as inputs or as outputs. One of these channels supports line rates up to 12G SDI while the three other ones go up to 3G SDI, allowing the solution supporting formats from SD to UHD. The card provides capture and playout 4K pictures at up to 60p without any compromise and over any type of interface (Square Division, 2-Sample Interleave, or 12G). With such a versatility and cutting-edge performances while still fitting in a very compact form factor, the DELTA-12G-elp-h 1c is the ideal solution for high-end UHD applications including encoders, media servers, GPU-based CG, and many other products with support for the most recent 4K standards.

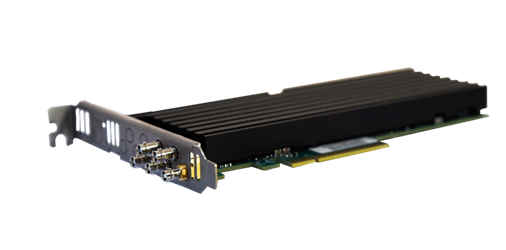

This card can be delivered with a passive heat sink, please contact us for further details.

  • 4K
  • LOW-
    PROFILE
  • SCALER
  • Micro BNC (HD-
    BNC)

Specifications

Hardware features
Bus Interface PCIe Gen3 x8
Form Factor Low-profile, half-length PCIe
Connectors Micro BNC (HD-BNC)
Sync Input Analog blackburst, tri-level sync (genlock) or LTC (ST12-1) reference input
Serial numbering 64-bit unique ID per card
LTC Input Natively supported on reference input; or can be added through a companion LTC card (option)
Hardware Processing
Video Signal Modes Single-link 4:2:2 10-bit, Dual Link 4:2:2 10-bit, Quad-Link 4:2:2 10-bit
Scalers 4x thumbnail scalers
CSC user programmable on inputs and outputs
Video Interfaces
Video Interfaces 12Gbps SDI (ST 2082-10)
6Gbps SDI (ST 2081-10)
3Gbps SDI (ST 424) Level A and Level B-DL (ST 425-1),
Dual Link 3G-SDI (ST 425-3),
Quad Link 3G-SDI (ST 425-5),
HD-SDI (ST 292),
Dual Link HD-SDI (ST 372),
SD-SDI (ST 259)
Video Formats SD : 625i50 (PAL), 525i59.94 (NTSC)

HD 1280x720 : 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24 ,720p23.98

HD 1920x1080 : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60 A/B, 1080p59.94 A/B, 1080p50 A/B, 1080p60, 1080p59.94, 1080p50.

2K 2048x1080 : 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.952

4K 3840x2160 or 4096x2160, in 8 or 10-bit, 2 Sample Interleave or Square Division : 2160p60, 2160p59.94, 2160p50, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
Audio formats Embedding or de-embedding of up to 16 digital audio channels per HD-SDI link or up to 32 digital audio channels per 3G-SDI link. (ST 272M and ST 299-x)
Ancillary data ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed captions)
