DELTA-3G40-hd40-elp-d
Compact multi-purpose 8-channel SDI capture cardCompact and cost-effective high-density SDI capture card.

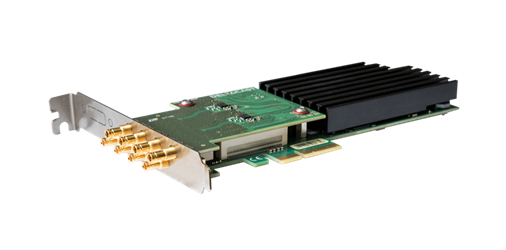

The DELTA-3G40-hd40-elp-d is a versatile solution for SDI capture, with an efficient PCIe gen-2 x4 low-profile from factor.
This compact capture board can be used in various purposes, from ingesting simultaneously up to eight feeds in HD-SDI (1080i50/60), or up to four feeds in 3G-SDI (1080p50/60), or one quad-link Square Division (quadrant-based) 4K UHD stream at up to 60fps (50fps in 10-bit).
- 4K
-
THUNDER-
BOLT - PCIe 2
-
LOW-
PROFILE
Specifications
Hardware features
Bus Interface | PCIe Gen2 x4 |
Form Factor | Low-profile, half-length PCIe |
Connectors | DIN 1.0/2.3 |
Sync Input | No |
Serial numbering | 64-bit unique ID per card |
LTC Input | Support of LTC companion card for Analog LTC (ST12-1) capture (on request only, ask support) |
Hardware Processing
Video Signal Modes | Single-link 4:2:2 10-bit, dual-link 4:2:2 10-bit |
Scalers | No |
CSC | No |
Video Interfaces
Video Interfaces |
3Gbps SDI (ST 424) Level A and Level B-DL (ST 425-1),
HD-SDI (ST 292), Dual-Link HD-SDI (ST 372) SD-SDI (ST 259) |
Video Formats |
SD : 625i50 (PAL), 525i59.94 (NTSC)
HD 1280x720 : 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24 ,720p23.98 HD 1920x1080 : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60 A/B, 1080p59.94 A/B, 1080p50 A/B, 1080p60, 1080p59.94, 1080p50. 2K 2048x1080 : 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.952 4K 3840x2160 : 2160p60, 2160p59.94, 2160p50, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98 |
Audio formats | Embedding or de-embedding of up to 16 digital audio channels per HD-SDI link or up to 32 digital audio channels per 3G-SDI link. (ST 272M and ST 299-x) |
Ancillary data | ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed captions) |
