DELTA-3G-elp-key 11

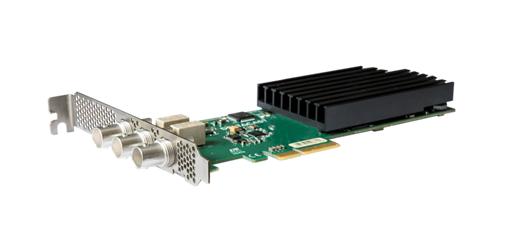

Compact single input, single output, SDI keyer cardHosting one input and one output supporting formats from SD (PAL, NTSC) to 3G-SDI (1080p), as well as a hardware keyer for on-the-fly computer graphics mixing, the DELTA-3G-elp-key 11 is a solid building block to implement products like captions renderers, CG, and any product with graphics overlay capabilities. The DELTA-3G-elp-key 11 features an analog reference input (genlock) and by-pass relays for perfect integration within broadcast installations. With an impressive performances vs power consumption ratio, reduced form factor and yet passive cooling, this card is tailored for industrial applications where reliability is not an option.
- 3G SDI
-
THUNDER-
BOLT - PCIe 2
-
LOW-
PROFILE - KEYER
Specifications
Hardware features
| Bus Interface | PCIe Gen2 x4 |
| Form Factor | Low-profile, half-length PCIe |
| Connectors | BNC |
| Sync Input | Blackburst or tri-level sync (genlock) reference input |
| Serial numbering | 64-bit unique ID per card |
| LTC Input | Support of LTC companion card for Analog LTC (ST12-1) capture (on request only, ask support) |
Hardware Processing
| Video Signal Modes | Single-link 4:2:2 10-bit |
| Scalers | No |
| CSC | user programmable on input and output |
Video Interfaces
| Video Interfaces |
3Gbps SDI (ST 424) Level A and Level B-DL (ST 425-1),
HD-SDI (ST 292), SD-SDI (ST 259) |
| Video Formats |
SD : 625i50 (PAL), 525i59.94 (NTSC)
HD 1280x720 : 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24 ,720p23.98 HD 1920x1080 : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60, 1080p59.94, 1080p50. 2K 2048x1080 : 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.952 |
| Audio formats | Embedding or de-embedding of up to 16 digital audio channels per HD-SDI link or up to 32 digital audio channels per 3G-SDI link. (ST 272M and ST 299-x) |
| Ancillary data | ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed captions) |
