DELTA-3G-elp-d 8c

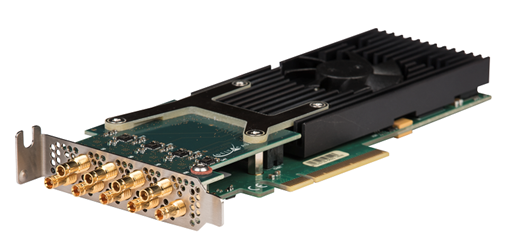

Compact versatile 8-channel 3G SDI cardInnovative solution for multi-channel SDI capture and playout in a compact form factor. The DELTA-3G-elp-d 8c hosts eight independent channels that can be used either as inputs or as outputs, supporting formats from SD (PAL, NTSC) to 3G-SDI (1080p). The channels can be combined together to capture and playout 4K pictures at up to 60p without any compromise (10-bit, Square Division or 2-Sample Interleave). With such a versatility and cutting-edge performances while still fitting in a very compact form factor, the DELTA-3G-elp-d 8c is the ideal solution for high-end multi-channel applications including encoders, media servers, GPU-based CG, and many other products with support for the most recent 4K standards.
This card can be delivered with a passive heat sink, please contact us for further details.
- 3G SDI
- 4K
-
THUNDER-
BOLT - SCALER
- PCIe 2
-
LOW-
PROFILE
Specifications
Bus Interface | PCIe Gen2 x8 |
Form Factor | Low-profile, half-length PCIe |
Connectors | DIN 1.0/2.3 |
Sync Input | Blackburst or tri-level sync (genlock) reference input |
Serial numbering | 64-bit unique ID per card |
LTC Input | Support of LTC companion card for Analog LTC (ST12-1) capture |
Video Signal Modes | Single-link 4:2:2 10-bit, dual-link 4:2:2 10-bit |
Scalers | proxy capture of each channel available |
CSC | user programmable on inputs and outputs |
Video Interfaces |
3Gbps SDI (ST 424) Level A and Level B-DL (ST 425-1),
Dual Link 3G-SDI (ST 425-3), Quad Link 3G-SDI (ST 425-5), HD-SDI (ST 292), Dual Link HD-SDI (ST 372), SD-SDI (ST 259) |
Video Formats |
SD : 625i50 (PAL), 525i59.94 (NTSC)
HD 1280x720 : 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24 ,720p23.98 HD 1920x1080 : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60 A/B, 1080p59.94 A/B, 1080p50 A/B, 1080p60, 1080p59.94, 1080p50. 2K 2048x1080 : 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.952 4K 3840x2160 or 4096x2160, in 8 or 10-bit, 2 Sample Interleave or Square Division : 2160p60, 2160p59.94, 2160p50, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98 |
Audio formats | Embedding or de-embedding of up to 16 digital audio channels per HD-SDI link or up to 32 digital audio channels per 3G-SDI link. (ST 272M and ST 299-x) |
Ancillary data | ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed captions) |
