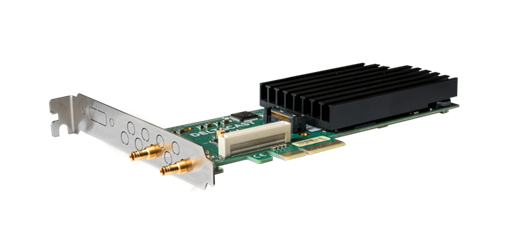

Compact single channel SDI playout card

This product you are looking for is no longer recommended for new design, please contact us to find the best alternative.



Still some questions, looking for specific technical documentation or any other inquiry?
Please do contact us, we’re here to help you!





  • 3G SDI
  • THUNDER-
    BOLT
  • PCIe 2
  • LOW-
    PROFILE

Specifications

Hardware features
Bus Interface PCIe Gen2 x4
Form Factor Low-profile, half-length PCIe
Connectors DIN 1.0/2.3
Sync Input Blackburst or tri-level sync (genlock) reference input
Serial numbering 64-bit unique ID per card
LTC Input Support of LTC companion card for Analog LTC (ST12-1) capture (on request only, ask support)
Hardware Processing
Video Signal Modes Single-link 4:2:2 10-bit
Scalers No
CSC No
Video Interfaces
Video Interfaces 3Gbps SDI (ST 424) Level A and Level B-DL (ST 425-1),
HD-SDI (ST 292),
SD-SDI (ST 259)
Video Formats SD : 625i50 (PAL), 525i59.94 (NTSC)

HD 1280x720 : 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24 ,720p23.98

HD 1920x1080 : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60, 1080p59.94, 1080p50.

2K 2048x1080 : 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.952
Audio formats Embedding or de-embedding of up to 16 digital audio channels per HD-SDI link or up to 32 digital audio channels per 3G-SDI link. (ST 272M and ST 299-x)
Ancillary data ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed captions)
