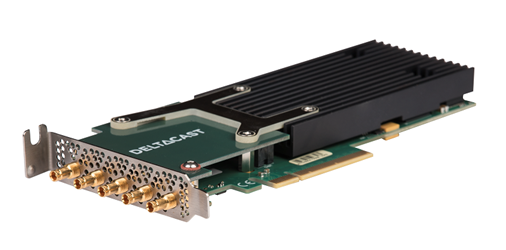

Compact dual 3G SDI keyer card with bypass relays

Low profile 4-channel (2-in, 2-out) 3G-SDI card with bypass relays, featuring two independent internal keyers, handling up to 1080p60 formats.

Can be used for dual internal linear keying and downstream keying (Fill + key outputs) applications.

Both mixers can work fully independently (dual-genlock solution) with any of the two inputs.

Standard features included : Passive Loopback (bypass relays) with watchdog, Delay Line, ANC mixer, Color Space Converters, LTC input, dual genlock, etc.

This card can be delivered with a passive heat sink, please contact us for further details.

  • KEYER
  • 3G SDI
  • LOW-
    PROFILE
  • DIN Con.
  • PCIe 2
  • THUNDER-
    BOLT
  • RDMA

Specifications

Hardware features
Bus Interface PCIe Gen2 x8
Form Factor Low-profile, half-length PCIe
Connectors DIN 1.0/2.3
Sync Input 2x Blackburst or tri-level sync (genlock) reference inputs
Serial numbering 64-bit unique ID per card
LTC Input /
Hardware Processing
Video Signal Modes Single-link 4:2:2 10-bit, dual-link 4:2:2 10-bit
Scalers /
CSC user programmable on inputs and outputs
Video Interfaces
Video Interfaces 3Gbps SDI (ST 424) Level A and Level B-DL (ST 425-1),
HD-SDI (ST 292),
Dual Link HD-SDI (ST 372),
SD-SDI (ST 259)
Video Formats SD : 625i50 (PAL), 525i59.94 (NTSC)

HD 1280x720 : 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24 ,720p23.98

HD 1920x1080 : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60 A/B, 1080p59.94 A/B, 1080p50 A/B, 1080p60, 1080p59.94, 1080p50

2K 2048x1080 : 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.952
Audio formats Embedding or de-embedding of up to 16 digital audio channels per HD-SDI link or up to 32 digital audio channels per 3G-SDI link. (ST 272M and ST 299-x)
Ancillary data ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed captions)
