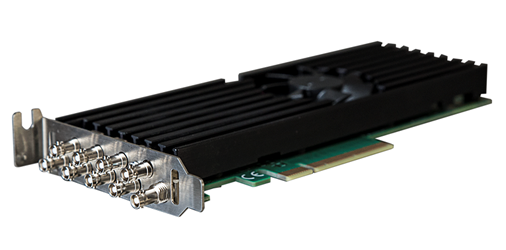

Compact quad channel 12G SDI playout card

Innovative solution for multi-channel 12G SDI playout in a compact PCIe gen-3 x8 low profile form factor. The DELTA-12G-elp-h 04 hosts eight independent output ports. Four of these ports supports line rates up to 12G SDI while the others go up to 3G-SDI, allowing support of output streams from SD to 8K60. The card provides playout of 8x 3G-SDI or 4x UHD streams without any compromise, over any type of interface (Quad-Link 3G Square Division, Quad-Link 3G 2-Sample Interleave, or Single Link 12G). Moreover, DELTA-12G-elp-h 04 can output 8K formats (up to 8K60) in Quad-Link 12G/6G Square Division and 2-Sample Interleave, from four 4K buffers or from a single 8K buffer in PC memory.

DELTA-12G-elp-h 04 also adds interesting features for playout applications such as, color space converters, planar buffer unpacking, advance clocking option including a software-based SDI clock dynamic control, a low-latency DMA engine, LTC reference input option, HDR formats support, etc. With such a versatility and cutting-edge performances, while still fitting in a very compact and robust form factor, the DELTA-12G-elp-h 04 is the ideal solution for high-end multi-channel UHD and 8K playout applications.

DELTA-12G-elp-h 04 is the natural evolution of our 8-output 3G products to enable support of 4x12G interfaces.


Hardware features
Bus Interface PCIe Gen3 x8
Form Factor Low-profile, half-length PCIe
Connectors Micro BNC (HD-BNC)
Sync Input Analog blackburst, tri-level sync (genlock) or LTC (ST12-1) reference input
Serial numbering 64-bit unique ID per card
LTC Input Natively supported on reference input; or can be added through a companion LTC card (option)
Hardware Processing
Video Signal Modes Single-link 4:2:2 10-bit, Dual Link 4:2:2 10-bit, Quad-Link 4:2:2 10-bit, SDR and HDR
Scalers /
CSC programmable CSC (RGB to YUV); chroma resampler; 4:4:4 or 4:2:0 to 4:2:2 conversion
Video Interfaces
Video Interfaces Quad Link 12Gbps SDI (Square Division)
12G-SDI (ST 2082-10)
6G-SDI (ST 2081-10)
3G-SDI Level A (ST 425-1 Level A Mapping),
3G-SDI Level B-DL (ST 425-1 Level B Dual-Link Mapping),
3G-SDI 3G Level B-DS (ST 425-1 Level B Dual-Stream Mapping),
Dual Link 3G-SDI (ST 425-3),
Quad Link 3G-SDI (ST 425-5),
HD-SDI (ST 292),
Dual Link HD-SDI (ST 372),
SD-SDI (ST 259)
Video Formats SD : 625i50 (PAL), 525i59.94 (NTSC)

HD 1280x720 : 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24 ,720p23.98

HD 1920x1080 : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60 A/B, 1080p59.94 A/B, 1080p50 A/B, 1080p60, 1080p59.94, 1080p50.

2K 2048x1080 : 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.952

4K 3840x2160 or 4096x2160, in 8 or 10-bit, 2 Sample Interleave or Square Division : 2160p60, 2160p59.94, 2160p50, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98

8K 7680x4320 or 8192x4320, 2 Sample Interleave or Square Division : 4320p60, 4320p59.94, 4320p50, 4320p48, 4320p47.952, 4320p30, 4320p29.97, 4320p25, 4320p24, 4320p23.98
Audio formats Embedding of up to 32 digital audio channels per 3G-SDI link. (ST 272M and ST 299-x)
Ancillary data ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed captions), HDR metadata
