DELTA-12G-elp 2C

DELTA-12G-elp 2C

DELTA-12G-elp 2C

Compact - 2X UHD - BNC connectors

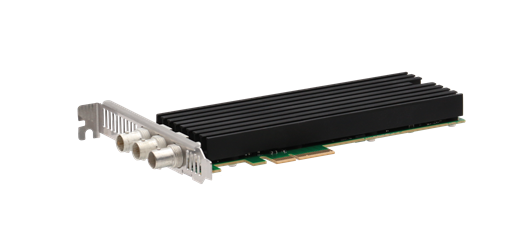

The DELTA-12G-elp 2C is a compact – half-length and low-profile form factor – SDI card coming with PCIe Gen-3 x4 interface.


It has two 12G-SDI bi-directional channels, which can be used to capture or play out video up to 2x 4K60.


The DELTA-12G-elp 2C is designed specifically for high-quality video applications and offers hardware features that allow it to handle
demanding uncompressed video formats. These features include complete CPU off-loading, subframe DMA engine, advanced packings and
color processing, proxy scalers, HDR formats support, application buffers, SDI signal diagnostic, audio and metadata extraction and embedding.

Specifications

Hardware features
Bus Interface PCIe Gen3 x4
Form Factor Low-profile, half-length PCIe
Connectors BNC
Sync Input Analog blackburst, tri-level sync (genlock) or LTC (ST12-1) reference input
Serial numbering 64-bit unique ID per card
LTC Input Natively supported on reference input; or can be added through a companion LTC card (option)
Hardware Processing
Video Signal Modes 4:2:2 10 bits YCbCr, 4:4:4 10 and 12 bits RGB
Scalers Proxy capture of each channel available
CSC Input and output
Video Interfaces
Video Interfaces 12G-SDI (ST 2082-10)
6G-SDI (ST 2081-10)
3G-SDI Level A (ST 425-1 Level A Mapping),
3G-SDI Level B-DL (ST 425-1 Level B Dual-Link Mapping),
3G-SDI 3G Level B-DS (ST 425-1 Level B Dual-Stream Mapping),
Dual Link 3G-SDI (ST 425-3),
Quad Link 3G-SDI (ST 425-5),
HD-SDI (ST 292),
Dual Link HD-SDI (ST 372),
SD-SDI (ST 259)
Video Formats SD : 625i50 (PAL), 525i59.94 (NTSC)

HD 1280x720 : 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24 ,720p23.98

HD 1920x1080 : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60 A/B, 1080p59.94 A/B, 1080p50 A/B, 1080p60, 1080p59.94, 1080p50.

2K 2048x1080 : 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.952

4K 3840x2160 or 4096x2160, in 8 or 10-bit, 2 Sample Interleave or Square Division : 2160p60, 2160p59.94, 2160p50, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
Audio formats Embedding or de-embedding of up to 32 digital audio channels per SDI link (ST 272M and ST 299-x)
Ancillary data ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed captions), HDR metadata
