DELTA-12G-e-h 4o2c
Compact versatile 12-channel 3G / 12G SDI card - up to 6x 4KInnovative solution for 12-channel SDI capture and playout in a compact form factor.

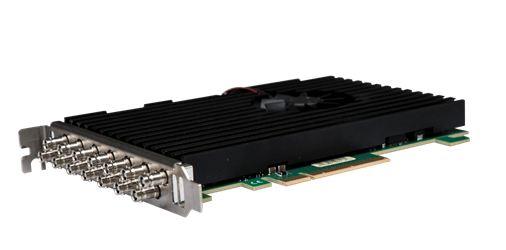

The DELTA-12G-e-h 4o2c hosts twelve independent SDI ports, 8 outputs, and 4 bi-directional channels; plus one genlock reference input and one genlock reference output (native or loop-thru). Moreover, six SDI ports support line rates up to 12G-SDI while the others go up to 3G-SDI, allowing the support of formats from SD to UHD. The card provides capture and playout of UHD or 4K-DCI pictures over any type of interface (Square Division, 2-Sample Interleave, or single link 6G/12G).
Such a mix of outputs and configurable channels, as well as of HD (3G-SDI) and UHD/4K (12G-SDI) formats still fitting in a very compact and power-efficient form factor makes DELTA-12G-e-h 4o2c the ideal match to many professional applications like high-density playout servers, and high-density production & replay video servers.
Specifications
Bus Interface | PCIe Gen3 x8 |
Form Factor | Standard Height, (shorter than) half-length PCIe |
Connectors | Micro BNC (HD-BNC) |
Sync Input | Analog blackburst, tri-level sync (genlock) or LTC (ST12-1) reference input. Passive loop-thru output of reference input available |
Serial numbering | 64-bit unique ID per card |
LTC Input | Natively supported on reference input; or can be added through a companion LTC card (option) |
Video Signal Modes | Single-link 4:2:2 10-bit, Dual-Link 4:2:2 10-bit, Quad-Link 4:2:2 10-bit |
Scalers | Configurable scalers available on each SDI input |
CSC | / |
Video Interfaces |
12G-SDI (ST 2082-10)
6G-SDI (ST 2081-10) 3G-SDI Level A (ST 425-1 Level A Mapping), 3G-SDI Level B-DL (ST 425-1 Level B Dual-Link Mapping), Dual Link 3G-SDI (ST 425-3), Quad Link 3G-SDI (ST 425-5), HD-SDI (ST 292), Dual Link HD-SDI (ST 372), SD-SDI (ST 259) |
Video Formats |
SD : 625i50 (PAL), 525i59.94 (NTSC)
HD 1280x720 : 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24 ,720p23.98 HD 1920x1080 : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60 A/B, 1080p59.94 A/B, 1080p50 A/B, 1080p60, 1080p59.94, 1080p50. 2K 2048x1080 : 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.952 4K 3840x2160 or 4096x2160, in 8 or 10-bit, 2 Sample Interleave or Square Division : 2160p60, 2160p59.94, 2160p50, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98 |
Audio formats | Embedding or de-embedding of up to 16 digital audio channels per HD-SDI link or up to 32 digital audio channels per 3G-SDI link. (ST 272M and ST 299-x) |
Ancillary data | ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed captions), HDR metadata |
