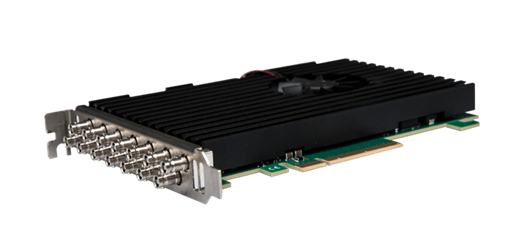

Compact versatile 12-channel 3G / 12G SDI card

Innovative solution for 12-channel SDI capture and playout in a compact form factor.

The DELTA-12G-e-h 2i1c hosts twelve independent SDI ports, 8 inputs, and 4 bi-directional channels; plus one genlock reference input and one genlock reference output (native or loop-thru). Moreover, three SDI ports support line rates up to 12G-SDI while the others go up to 3G-SDI, allowing the support of formats from SD to UHD. The card provides capture and playout of UHD or 4K-DCI pictures without any compromise, and over any type of interface (Square Division, 2-Sample Interleave, or single link 6G/12G).

Such a mix of inputs and configurable channels, as well as of HD (3G-SDI) and UHD/4K (12G-SDI) formats still fitting in a very compact and power-efficient form factor makes DELTA-12G-e-h 2i1c the ideal match to many professional applications like multi-camera systems (analysis, compliance recording, video encoding, media servers), high-density production & replay video servers, multiviewers, and video switchers.

Specifications

Hardware features
Bus Interface PCIe Gen3 x8
Form Factor Standard Height, (shorter than) half-length PCIe
Connectors Micro BNC (HD-BNC)
Sync Input Analog blackburst, tri-level sync (genlock) or LTC (ST12-1) reference input. Passive loop-thru output of reference input available
Serial numbering 64-bit unique ID per card
LTC Input Natively supported on reference input; or can be added through a companion LTC card (option)
Hardware Processing
Video Signal Modes Single-link 4:2:2 10-bit, Dual-Link 4:2:2 10-bit, Quad-Link 4:2:2 10-bit
Scalers Configurable scalers available on each SDI input
CSC /
Video Interfaces
Video Interfaces 12G-SDI (ST 2082-10)
6G-SDI (ST 2081-10)
3G-SDI Level A (ST 425-1 Level A Mapping),
3G-SDI Level B-DL (ST 425-1 Level B Dual-Link Mapping),
Dual Link 3G-SDI (ST 425-3),
Quad Link 3G-SDI (ST 425-5),
HD-SDI (ST 292),
Dual Link HD-SDI (ST 372),
SD-SDI (ST 259)
Video Formats SD : 625i50 (PAL), 525i59.94 (NTSC)

HD 1280x720 : 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24 ,720p23.98

HD 1920x1080 : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60 A/B, 1080p59.94 A/B, 1080p50 A/B, 1080p60, 1080p59.94, 1080p50.

2K 2048x1080 : 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.952

4K 3840x2160 or 4096x2160, in 8 or 10-bit, 2 Sample Interleave or Square Division : 2160p60, 2160p59.94, 2160p50, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
Audio formats Embedding or de-embedding of up to 16 digital audio channels per HD-SDI link or up to 32 digital audio channels per 3G-SDI link. (ST 272M and ST 299-x)
Ancillary data ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed captions), HDR metadata
