DELTA-GWY 308-8

DELTA-GWY 308-8

DELTA-GWY 308-8

PCIe Gen3 x8 FLEX gateway to connect up to 8 modules

The DELTA-gwy 308-8 is the gateway of DELTACAST’s revolutionary FLEX solution answering the questions of flexibility, high density and scalability.

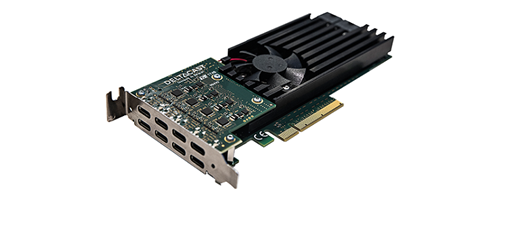

This is an 8-port low-profile, half-length PCI Express Gen3 x8 card.


The DELTA-gwy 308-8 supports up to eight different and independent FLEX I/O modules, allowing to select your interfaces – SDI, HDMI, DisplayPort, or a mix of them – on the go, without touching your computer enclosure, just by connecting the FLEX modules (each module is an independent device that manages one or several video channels) to the DELTA-gwy 308-8 interface using specific cables.

This x8 PCI-e version is ideal for platform where only a x8 mechanical slot is available.  With 8-lane gen-3, the max performance will be  4x 4K60 per direction.


The FLEX products group is the ideal solution for high-density video applications, media servers, multiviewers, and many other products.



Specifications

Hardware features
Bus Interface PCIe Gen3 x8
Form Factor Low-profile, half-length PCIe
Connectors Custom Interface Connectors
Amount of FLEX modules supported 8
