DELTA-12G2c-hmi10-elp

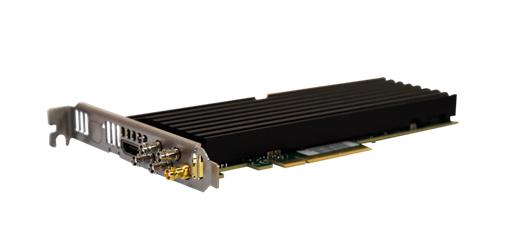

Mixed 12G SDI and HDMI 2.0b UHD capture and playout cardThe DELTA-12G2c-hmi10-elp is a mixed interface products, providing an HDMI™ 2.0 (600MHz TMDS) capture channel along with 4 SDI bi-directional I/Os, two of them supporting up to 12G-SDI and the two other ones supporting up to 3G-SDI.
The card is tailored to fully support up to triple UHDTV (4K60) use cases, with one 4K60 feed being captured on the HDMI input, and two additional 4K60 channels handled in SDI in reception or in transmission.
Obviously, the card usage is not restricted to UHDTV, and it supports many different formats on its HDMI™ and SDI connectors. The four 3G-SDI channels can be used all simultaneously and independently from each other.
Designed for high-performance applications and HDR workflows, the DELTA-12g2c-hmi10-elp includes on-board color processing features (color space converters, chroma resampler, planar buffer packing), proxy scalers, embedded audio and HDR metadata support.
Innovative solution for both HDMI capture and SDI capture/playout in a compact, low profile PCIe form factor, this card can be delivered with a passive heat sink, please contact us for further details.
Note that the initial release of this product was under the name of DELTA-12G1c-hmi10-elp, providing support for one 12G-SDI channel only. Since VideoMaster 6.24 the product now supports two 12G-SDI channels, what reflects the new DELTA-12G2c-hmi10-elp part number.
The card meets IEC 60601-1-2 EMI/ESD requirements for the certification of medical electrical devices.
- 4K
-
LOW-
PROFILE - SCALER
-
Micro BNC (HD-
BNC) - BNC Con.
-
12G-
SDI - RDMA
- Virtual Production
Specifications
| Bus Interface | PCIe Gen3 x8 |
| Form Factor | Low-profile, half-length PCIe |
| Connectors | 5x Micro BNC (HD-BNC) and 1x HDMI (Type A) |
| Sync Input | Analog blackburst, tri-level sync (genlock) or LTC (ST12-1) reference input |
| Serial numbering | 64-bit unique ID per card |
| LTC Input | Natively supported on reference input; or can be added through a companion LTC card (option) |
| Video Signal Modes | SDI : Single-link 4:2:2 10-bit, Dual Link 4:2:2 10-bit, Quad-Link 4:2:2 10-bit. HDMI : YCbCr 4:2:2 8/10/12/16-bit, RGB/YCbCr 4:4:4 8-bit, RGB/YCbCr 4:4:4 10/12/16-bit |
| Scalers | Proxy capture of each SDI channel available |
| CSC | Color Space Converters on inputs and outputs |
| Video Interfaces |
12G-SDI (ST 2082-10)
6G-SDI (ST 2081-10) 3G-SDI Level A (ST 425-1 Level A Mapping), 3G-SDI Level B-DL (ST 425-1 Level B Dual-Link Mapping), 3G-SDI 3G Level B-DS (ST 425-1 Level B Dual-Stream Mapping), Dual Link 3G-SDI (ST 425-3), Quad Link 3G-SDI (ST 425-5), HD-SDI (ST 292), Dual Link HD-SDI (ST 372), SD-SDI (ST 259) HDMI 2.0b (600MHz TMDS clock) DisplayPort 1.2 when combined with active conversion accessory (PN# a-dp2hdmi-0150) |
| Video Formats |
HDMI and SDI video formats
SD : 625i50 (PAL), 525i59.94 (NTSC) HD 1280x720 : 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24 ,720p23.98 HD 1920x1080 : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60 A/B, 1080p59.94 A/B, 1080p50 A/B, 1080p60, 1080p59.94, 1080p50. 2K 2048x1080 : 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.952 4K 3840x2160 or 4096x2160, in 8 or 10-bit, 2 Sample Interleave or Square Division : 2160p60, 2160p59.94, 2160p50, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98 HDMI Graphic formats : VGA, SVGA, XVGA, WXGA, WXGA+, UXGA, WUXGA, WSXGA. Custom HDMI format capture support. |
| Audio formats | Embedding or de-embedding of up to 16 digital audio channels per HD-SDI link or up to 32 digital audio channels per 3G-SDI link. (ST 272M and ST 299-x). HDMI audio capture Audio up to 8-channel IEC60958 (PCM) or IEC61937 (DSD, HBR) |
| Ancillary data | ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed captions) |
