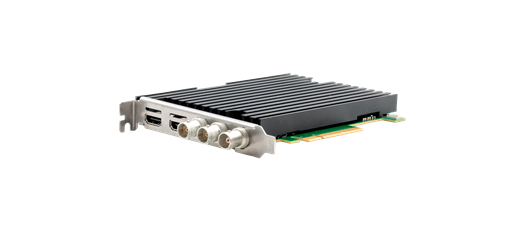

Mixed SDI/HDMI single keyer card

The DELTA-12G11-hmi11-e-key is a mixed interface, hardware keyer card, specially designed for critical real-time AI/AR video pipelines.

This card targets high-reliability and high-performance applications, in either SDI or HDMI environment, while providing a low-latency reliable keyed output.

Tailored for augmented reality use cases in computer-assisted surgery, robotics, and surgical navigation, the DELTA-12G11-hmi11-e-key meets all the requirements of a robust solution, including : active and passive bypass to secure the video path against a series of incidents, fanless cooling to eliminate mechanical risk linked to rotating elements, and PCIe hockey stick for better retention.

The card meets IEC 60601-1-2 EMI/ESD requirements for the certification of medical electrical devices.

DELTA-12G11-hmi11-e-key can be used in a Windows, Linux or Mac computer, as well as in ARM-based embedded platforms or dedicated medical appliances like NVidia Clara Holoscan.

Specifications

Hardware features
Bus Interface PCIe Gen3 x8
Form Factor Standard height, half-length PCIe
Connectors BNC and HDMI (Type A)
Sync Input Blackburst or tri-level sync (genlock) reference input
Serial numbering 64-bit unique ID per card
LTC Input Natively supported on reference input
Hardware Processing
Video Signal Modes SDI : Single-link 4:2:2 10-bit, Dual Link 4:2:2 10-bit, Quad-Link 4:2:2 10-bit

HDMI Up to 4K60 : YCbCr 4:2:2 8/10/12-bit, RGB/YCbCr 4:4:4 8-bit, YCbCr 4:2:0 8/10/12/16-bit

HDMI Up to 4K30 : RGB/YCbCr 4:4:4 10/12/16-bit
Scalers -
CSC Color Space Converters on inputs and outputs
Video Interfaces
Video Interfaces 12G-SDI (ST 2082-10)
6G-SDI (ST 2081-10)
3G-SDI Level A (ST 425-1 Level A Mapping),
3G-SDI Level B-DL (ST 425-1 Level B Dual-Link Mapping),
HD-SDI (ST 292),
SD-SDI (ST 259)

HDMI 2.1 (max 4K60 4:4:4 10-bit)
Video Formats HDMI and SDI video formats
SD : 625i50 (PAL), 525i59.94 (NTSC)

HD 1280x720 : 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24 ,720p23.98

HD 1920x1080 : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60 A/B, 1080p59.94 A/B, 1080p50 A/B, 1080p60, 1080p59.94, 1080p50.

2K 2048x1080 : 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.952

4K 3840x2160 or 4096x2160, in 8 or 10-bit, 2 Sample Interleave or Square Division : 2160p60, 2160p59.94, 2160p50, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98
Audio formats Embedding or de-embedding of up to 16 digital audio channels per HD-SDI link or up to 32 digital audio channels per 3G-SDI link. (ST 272M and ST 299-x). HDMI audio capture Audio up to 8-channel IEC60958 (PCM) or IEC61937 (DSD, HBR)
Ancillary data ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed captions)
