IP Virtual Card - SMPTE ST 2110 edition

Software stack for ST 2110 video streaming

The IP Virtual Card is a software stack allowing high-performance video capture and streaming using standard network cards (NIC).

Part of the universal VideoMaster SDK addressing all the DELTACAST hardware and software products, the IP Virtual Card offers a unique way to accelerate the transition to ST 2110.

The IP Virtual Card supports uncompressed video essence as per ST 2110-20, audio as per ST 2110-30, ancillary data as per ST 2110-40 and compressed video as per ST 2110-22. It also includes a PTP synchronization solution compliant to ST 2059-2.

Thanks to an optimized network stack, the IP Virtual Card insures accurate, PTP locked, media streams.

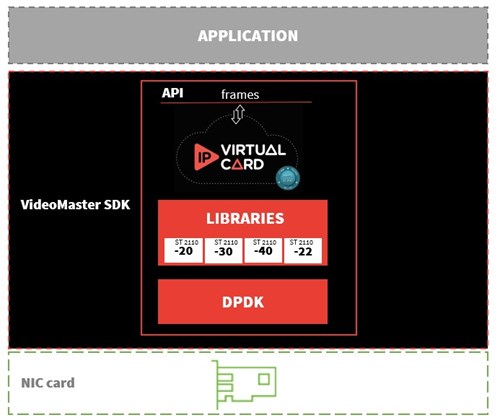

			The IP Virtual Card relies on the same VideoMaster SDK as the DELTACAST video I/O cards. Existing DELTACAST users will find the same concepts and programming interface, while new developers will discover the benefits of VideoMaster SDK to design their own application. 100% under your control!
			The IP Virtual Card is your launchpad towards future evolutions of the SMPTE 2110 standard. This is where DELTACAST expertise comes into play. The abstraction layer provided by VideoMaster SDK will future-proof your application and secure your investment.

SMPTE standards

ST 2110-10 (system timing)
ST 2110-20 (uncompressed video)
ST 2110-30 (PCM digital audio)
ST 2110-40 (ancillary data)
ST 2110-21 (traffic shaping)
ST 2110-22 (compressed video) with support for JPEG XS codec integration
ST 2022-7 (protection switching)
ST 2059 (PTP)

ST 2022-6 (SDI over IP)

ST 2022-5 (FEC)

ST 2110-31 (AES3 audio)

Capabilities

4:2:2 and 4:4:4, 8/10/12-bit video
Full access to video, audio and ancillary data essences
Encoding and decoding services for most ANC data types (timecode, captions, HDR metadata…)
Coupled streams for synchronous emission/reception of essences
ST 2110-21 type W sender (type NL through dedicated license) and type A receiver
OS sockets and network stack for maximum interoperability
Optimized version based on the DPDK kernel bypass for most demanding use cases
Hardware-accelerated version supporting NVidia® ConnectX and Bluefield NICs, to the best performances vs CPU usage ratio in high-density use cases

SDK content

Autonomous service
C/C++ API
Compatible with Windows and Linux
Error Logging
Comprehensive documentation
Sample codes to illustrate SDK usage and 3rd-party NMOS library integration
Installers
Full online help and support

Video formats

SD : NTSC 525i59.97, PAL 625i50
HD : 720p 23.98/24/25/29.97/30/50/59.94/60
HD : 1080i/p/psf 23.98/24/25/29.97/30/50/59.94/60
HD : 2048p 23.98/24/25/29.97/30/47.95/48/50/59.94/60
UHD : 2160p 25/29.97/30/47.95/48/50/59.94/60
