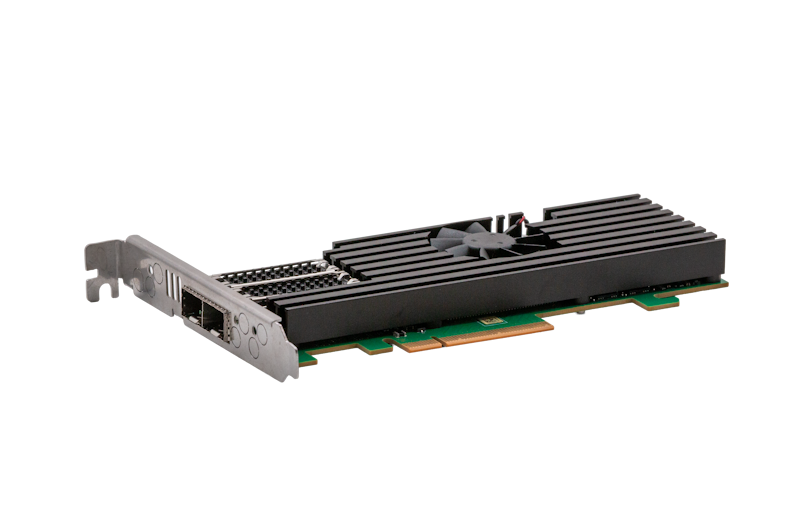

Compact 4-channel IP ST 2110 playout card

DELTA-ip-ST2110 01 is a 10-bit uncompressed video-over-ip playout card; supporting up to four 1080p50 video channels in elementary essence RTP streams over a single 10GbE interface, with ST2110-20 (video), ST2110-30 (audio) and ST2110-40 (ANCs).

The second 10GbE port of the card is used for seamless protection switching of datagrams as per ST2022-7.

The DELTA-ip-ST2110 01 is the ideal solution for industrial applications, video servers, and many other products where the reliability is not an option.

It has been specially designed to provide a smooth transition path from SDI to IP workflows. The card takes in charge all the IP stack, SMPTE ST2110 packetization, PTP synchronization, off-loading the CPU and providing the user application the same audio/video/ANC buffers as if using an SDI card, through our VideoMaster SDK.


Hardware features
Bus Interface PCIe Gen2 x8
Form Factor Low-profile, half-length PCIe
Connectors Dual 10GbE SFP+
Sync Input SMPTE ST 2059-1 and 2059-2 - IEEE 1588-2008 Precision Time Protocol (PTPv2) for broadcast operations
Serial numbering 64-bit unique ID per card
LTC Input
Hardware Processing
Video Signal Modes YUV 4:2:2 8-bit or 10-bit
Video Interfaces
Video Interfaces ST 2110-20 - Uncompressed Active Video RTP Payload (up to 4 streams)
ST 2110-21 - narrow (linear) sender
ST 2110-30 - Conformance level CX (up to 4 streams)
ST 2110-40 - SMPTE ST 291-1 Ancillary Data Packet RTP Payload (up to 4 streams)
PTP - Profile AES67/SMPTE2059-2, Multicast & Mixed SMPTE
ARP, IGMP support
ST 2022-7 seamless protection switching
Video Formats SD : NTSC 525i59.97 and 480i59.97; PAL 625i50

HD : 720p 23.98/24/25/29.97/30/50/59.94/60

HD : 1080i/p/psf 23.98/24/25/29.97/30/50/59.94/60

HD : 2048p 23.98/24/25/29.97/30/47.95/48/50/59.94/60

UHD : 2160p (3840x2160 & 4096x2160) 23.98/24/25/29.97/30/50
Audio formats Uncompressed PCM Digital Audio RTP Payload up to 64 channels per RTP stream (Conformance level CX)
Ancillary data ST 2110-40 / RFC 8331 - ancillary data in RTP stream support
