SMPTE ST 2110 Card - DELTA-ip-ST2110 10

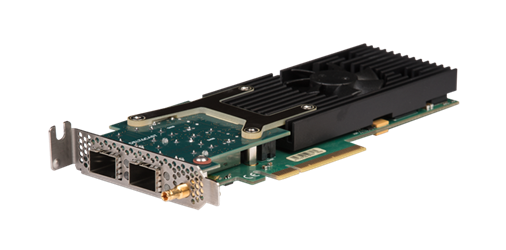

Compact 4-channel IP ST 2110 capture card
DELTA-ip-ST2110 10 is a 10-bit uncompressed video-over-ip card, supporting up to four 1080p50 video channels in elementary essence RTP streams over a single 10GbE interface, with SMPTE ST2110-20 (video), ST2110-30 (audio) and ST2110-40 (ANCs).
The DELTA-ip-ST2110 10 is the ideal solution for industrial applications, encoders, video servers, and many other products where the reliability is not an option.
The second 10GbE port of the card is used for seamless protection switching of datagrams as per ST2022-7.
It has been specially designed to provide a smooth transition path from SDI to IP workflows. The card takes in charge all the IP stack, SMPTE ST2110 depacketization, PTP synchronization, off-loading the CPU and providing the user application the same audio/video/ANC buffers as if using an SDI card, through our VideoMaster SDK.
- IP SMPTE 2110
- 4K
- PCIe 2
-
LOW-
PROFILE
Specifications
| Bus Interface | PCIe Gen2 x8 |
| Form Factor | Low-profile, half-length PCIe |
| Connectors | Dual 10GbE SFP+ |
| Sync Input | SMPTE ST 2059-1 and 2059-2 - IEEE 1588-2008 Precision Time Protocol (PTPv2) for broadcast operations |
| Serial numbering | 64-bit unique ID per card |
| LTC Input |
| Video Signal Modes | YUV 4:2:2 8-bit or 10-bit |
| Scalers | / |
| CSC | / |
| Video Interfaces |
ST 2110-20 - Uncompressed Active Video RTP Payload (up to 4 streams)
ST 2110-21 - wide receiver ST 2110-30 - Conformance level CX (up to 4 streams) ST 2110-40 - SMPTE ST 291-1 Ancillary Data Packet RTP Payload (up to 4 streams) PTP - Profile AES67/SMPTE2059-2, Multicast & Mixed SMPTE ARP, IGMP support. ST 2022-7 seamless protection switching |
| Video Formats |
SD : NTSC 525i59.97 and 480i59.97; PAL 625i50
HD : 720p 23.98/24/25/29.97/30/50/59.94/60 HD : 1080i/p/psf 23.98/24/25/29.97/30/50/59.94/60 HD : 2048p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 UHD : 2160p (3840x2160 & 4096x2160) 23.98/24/25/29.97/30/50 |
| Audio formats | Uncompressed PCM Digital Audio RTP Payload up to 64 channels per RTP stream (Conformance level CX) |
| Ancillary data | ST 2110-40 / RFC 8331 - ancillary data in RTP stream support |
