DELTA-ip-ST2022-6-tico

Compact single channel IP ST2022-6 card with TICO support

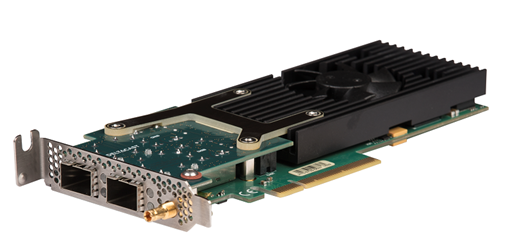

DELTA-ip-ST2022-6 is a dual-port 10GbE card. The main port supports up to three 3G/HD/SD SDI channels embedded in ST2022-6 datagrams with optional support for FEC streams as per ST2022-5, while the second 10GbE port is used for seamless protection switching of datagrams as per ST2022-7.

UHD formats are supported thanks to TICO compression.

The DELTA-ip-ST2022-6 is the ideal solution for industrial applications, encoders, video servers, and many other products where the reliability is not an option.

It can be freely re-flashed as an input or an output card.

This card can be delivered with a passive heat sink, please contact us for further details.

IP SMPTE 2110
Mezzanine compression
4K
LOW-
PROFILE
PCIe 2

Hardware features

Bus Interface	PCIe Gen2 x8
Form Factor	Low-profile, half-length PCIe
Connectors	Dual-input 10GbE SFP+
Sync Input	Blackburst or tri-level sync (genlock) reference input
Serial numbering	64-bit unique ID per card
LTC Input	Support of LTC companion card for Analog LTC (ST12-1) capture

Hardware Processing

Video Signal Modes	Video transport as per SMPTE ST2022-6
Scalers	proxy capture of each SDI channel available
CSC	/

Video Interfaces

Video Interfaces	ST2022-6, ST2022-7, ST2022-6. Support IGMPv2 for multicast join/leave. TICO (SMPTE RDD-35) implementation for 12Gbps UHDTV stream transport over SMPTE 2022-6.
Video Formats	SD : NTSC 525i59.97, PAL 625i50 HD : 720p 23.98/24/25/29.97/30/50/59.94/60 HD : 1080i/p/psf 23.98/24/25/29.97/30/50/59.94/60 HD : 2048p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 UHD : 2160p (3840x2160 & 4096x2160) 23.98/24/25/29.97/30/50/59.94/60
Audio formats	Embedding or de-embedding of up to 16 digital audio channels per HD-SDI link or up to 32 digital audio channels per 3G-SDI link. (ST 272M and ST 299-x)
Ancillary data	ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed captions)
