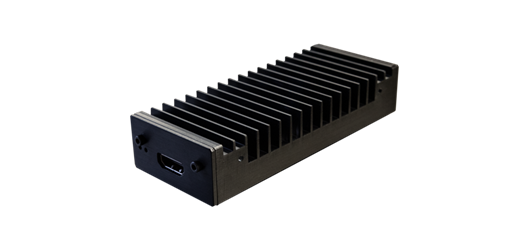

Compact versatile 1-channel HDMI™ 2.0 output module

Innovative solution for HDMI™ output in a compact from factor. The FLEX-hmi 01 hosts one HDMI™ 2.0 output channel that supports video and graphics formats up to 4K60 without any compromise. This FLEX module works in combination with a DELTA-gwy PCIe card and up to seven other modules (SDI, HDMI, DisplayPort), proving a total of up to 8 (DisplayPort™ / HDMI) or 32 (SDI) interface, or a mix of them.

With such a versatility and cutting-edge performances while still fitting in a very compact form factor, the FLEX-hmi 01 is the ideal solution for high-end multi-channel applications including high-density video applications, media servers, multiviewers, encoders, GPU-based CG, and many other products with support for the most recent 4K standards.


Hardware features
Bus Interface Proprietary
Form Factor Flex module 2M : 49x116x21 mm
Connectors HDMI™
Sync Input
Serial numbering 64-bit unique ID
LTC Input
Hardware Processing
Video Signal Modes Up to 4K60 : YCbCr 4:2:2 8/10/12-bit, RGB/YCbCr 4:4:4 8-bit, YCbCr 4:2:0 8/10/12/16-bit

Up to 4K30 : RGB/YCbCr 4:4:4 10/12/16-bit
Scalers /
CSC User programmable CSC matrix
Video Interfaces
Video Interfaces HDMI 2.0b
Video Formats Video formats : PAL, NTSC, 720p, 1080i, 1080p, 2160p (4K DCI and UHDTV1)
Graphics formats up to WUXGA
Deep color and high frame rate formats support
Audio formats Support of up to 8 digital audio channels
Ancillary data
