DELTA-h4k2-elp 20

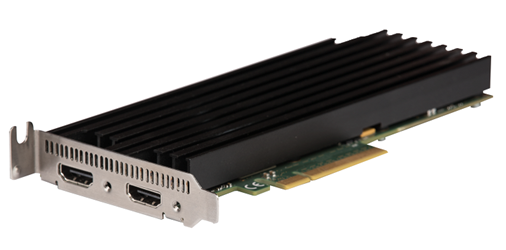

Dual channel HDMI™ 2.0 capture cardHigh-end HDMI™ 2.0b capture card, hosting two inputs with support of any HDMI formats, including HDMI™ 2.0 (600MHz TMDS) 4K 60Hz 4:4:4 8-bit simultaneously on both ports.
Specially tuned for high-performance applications such as dual 4K (and UHDTV) 60Hz capture and HDR formats. Include on-board color processing features, embedded audio support, and HDMI metadata support.
Thanks to an advanced EDID management with custom content support, the DELTA-hdmi20-elp 20 seamlessly brings virtually any HDMI™ signals into your media server. With an impressive performances vs power consumption ratio on very a compact form factor and yet passive cooling, this card is the ideal solution for many applications where performance and reliability are not options.
This product can be used in a DisplayPort™ application with simple converter cable available from DELTACAST
- 4K
-
THUNDER-
BOLT - PCIe 2
-
LOW-
PROFILE - SCALER
Specifications
| Bus Interface | PCIe Gen2 x8 |
| Form Factor | Low-profile, half-length PCIe |
| Connectors | HDMI (Type A) |
| Sync Input | N.A. |
| Serial numbering | 64-bit unique ID per card |
| LTC Input | Support of LTC companion card for Analog LTC (ST12-1) capture |
| Video Signal Modes |
Up to 4K60 : YCbCr 4:2:2 8/10/12-bit, RGB/YCbCr 4:4:4 8-bit, YCbCr 4:2:0 8/10/12/16-bit Up to 4K30 : RGB/YCbCr 4:4:4 10/12/16-bit |
| Scalers | Yes |
| CSC | Yes |
| Video Interfaces |
HDMI 2.0b (600MHz TMDS clock)
DisplayPort 1.2 when combined with active conversion accessory (PN# a-dp2hdmi-0150) |
| Video Formats |
Video formats: PAL, NTSC, 720p, 1080i, 1080p, 2160p (4K-DCI or UHDTV)
Graphic formats : VGA, SVGA, XVGA, WXGA, WXGA+, UXGA, WUXGA, WSXGA RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 8-bit, 10-bit, 12-bit, 16-bit Frame rates from 23.98Hz to 120Hz depending on formats |
| Audio formats | Up to 8 digital audio channels per HDMI port |
| Ancillary data | Audio up to 8-channel IEC60958 (PCM) or IEC61937 (DSD, HBR) |
