World’s first fully bi-directional 8-channel 12G-SDI video card

Are you in need of handling and manipulating SDI channels, in speed grades from SD-SDI all the way up to 12G-SDI?

Our guess is that it is not always easy to know in advance what speed grade you need for which SDI channels, and so the easiest way would be to support it on every SDI channel you have.

This is exactly what the DELTACAST latest product is offering, and on top of that you can also decide whether it should be input, or output.

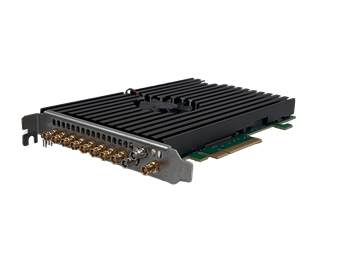

The DELTA-12G-e-h 8C provides: 8 channels, fully configurable as inputs or outputs. Each channel supports SD-SDI up to 12G-SDI, so up to uncompressed video in 8x 4K60 or 2x 8K60. Genlock reference input (Blackburst/TriLevel) with a loop-thru output, and Linear Timecode (LTC - ST 12-1) input. Full-height, half-length (FHHL) form factor. PCIe Gen-4 x8 electrical interface.

The DELTA-12G-e-h 8c is specifically designed for very high-performance video applications and offers hardware features that allow to handle demanding uncompressed video formats. These features include gen-4 x8 PCIe bandwidth, CPU off-loading, NVIDIA GPUDirect® RDMA support, Ultimate Low latency (ULL), advanced packings, proxy scalers, HDR formats support, application buffers, SDI signal error diagnostic, audio and metadata extraction and embedding.

It comes with a rich features set, available through the universal VideoMaster OEM SDK.

Charmed?

For more details, discussing your specific needs, please do contact us right away! contact@deltacast.tv
