Quad HDMI 2.1 capture card official launch
Tuesday, April 15, 2025

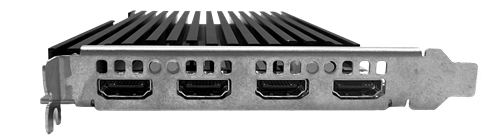

DELTACAST proudly announces the official release and general availability of the already successful DELTA-hmi-e 40
This quad channel HDMI 2.1 capture board brings AV live ingest and processing to a new level:
- 4 independent capture channels
- High resolution support up to 8K and even 10K
- High framerate (HFR) up to 120fps
- High Dynamic Range (HDR) color definition up to RGB 4:4:4 12-bit and YUV 4:4:4/4:2:2 16-bit
DELTA-hmi-e 40 comes with a rich features set, available through the universal DELTACAST VideoMaster SDK:
- Audio capture, up to 8 channels per HDMI port
- Easy EDID management
- High-resolution capture timestamps for multi-channel and multi-card synchronization
- Frame-based mode and ultra-low latency (ULL) sub-frame capture mode
- Hardware color space conversion and chroma resampling
- Proxy scalers (low-res video preview)
- Nvidia GPU Direct RDMA for direct capture to the GPU memory
Charmed ? ORDER NOW!
To make use of the card in your system, DELTACAST provides several software frameworks to download:
- VideoMaster SDK 6.30
- Directshow® filters
- Unreal Engine plugin
- Nvidia Holoscan operator
Missing anything? Contact me for any questions! contact@deltacast.tv
