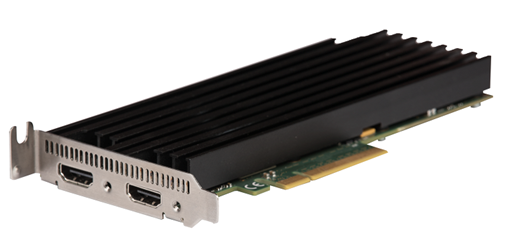

Dual channel HDMI™ 2.0 capture card

High-end HDMI™ 2.0b capture card, hosting two inputs with support of any HDMI formats, including HDMI™ 2.0 (600MHz TMDS) 4K 60Hz 4:4:4 8-bit simultaneously on both ports.

Specially tuned for high-performance applications such as dual 4K (and UHDTV) 60Hz capture and HDR formats. Include on-board color processing features, embedded audio support, and HDMI metadata support.

Thanks to an advanced EDID management with custom content support, the DELTA-hdmi20-elp 20 seamlessly brings virtually any HDMI™ signals into your media server. With an impressive performances vs power consumption ratio on very a compact form factor and yet passive cooling, this card is the ideal solution for many applications where performance and reliability are not options.

This product can be used in a DisplayPort™ application with simple converter cable available from DELTACAST



  • 4K
  • THUNDER-
    BOLT
  • PCIe 2
  • LOW-
    PROFILE
  • SCALER

Specifications

Hardware features
Bus Interface PCIe Gen2 x8
Form Factor Low-profile, half-length PCIe
Connectors HDMI (Type A)
Sync Input N.A.
Serial numbering 64-bit unique ID per card
LTC Input Support of LTC companion card for Analog LTC (ST12-1) capture
Hardware Processing
Video Signal Modes Up to 4K60 : YCbCr 4:2:2 8/10/12-bit, RGB/YCbCr 4:4:4 8-bit, YCbCr 4:2:0 8/10/12/16-bit

Up to 4K30 : RGB/YCbCr 4:4:4 10/12/16-bit
Scalers Yes
CSC Yes
Video Interfaces
Video Interfaces HDMI 2.0b (600MHz TMDS clock)
DisplayPort 1.2 when combined with active conversion accessory (PN# a-dp2hdmi-0150)
Video Formats Video formats: PAL, NTSC, 720p, 1080i, 1080p, 2160p (4K-DCI or UHDTV)

Graphic formats : VGA, SVGA, XVGA, WXGA, WXGA+, UXGA, WUXGA, WSXGA

RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0

8-bit, 10-bit, 12-bit, 16-bit

Frame rates from 23.98Hz to 120Hz depending on formats
Audio formats Up to 8 digital audio channels per HDMI port
Ancillary data Audio up to 8-channel IEC60958 (PCM) or IEC61937 (DSD, HBR)
