Combination of SDI and ASI channels on a card

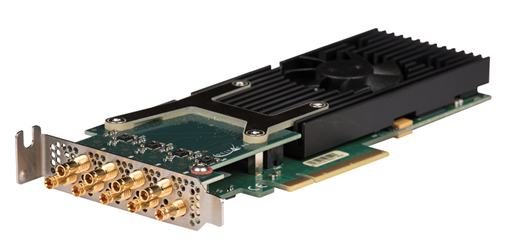

This 8-port professional video card provides a gateway between up to four 3G/HD/SD-SDI bi-directional I/Os, four DVB-ASI bi-directional I/Os (214Mbps per ASI stream) and a standard PC.

The 4x SDI I/Os can run independently (4 separate channels) or combined to transport multi-link 3G-SDI formats such as 2160p60, 4:2:2 10-bit, in 4x 3G-SDI “4-quadrant, square division, SQD” or “2-sample interleaved, 2SI” (ST425-5). The SDI port direction (RX/TX) can be dynamically switched through the SDK, independently on all ports.

The four additional I/Os are bi-directional ASI ports; each allowing reception or transmission of DVB-ASI streams (CENELEC/DVB standard EN50083-9). The maximum DVB-ASI bitrate of 214Mbps is supported in transmission and reception on all ports. The ASI port direction (RX/TX) can be dynamically switched through the SDK, independently on all ports.

The combination of these 4x 3G-SDI and 4x DVB-ASI full-performance bi-directional ports; along with advanced capture and playout features (planar buffer support, chroma up/down sampler, SDI rate dynamic control, etc.), makes it the most versatile professional video card, specially tuned for broadcast encoder and decoder applications.

  • 4K
  • SCALER
  • PCIe 2
  • THUNDER-
    BOLT
  • DIN Con.
  • LOW-
    PROFILE
  • 3G SDI

Specifications

Hardware features
Bus Interface PCIe Gen2 x8
Form Factor Low-profile, half-length PCIe
Connectors DIN 1.0/2.3
Sync Input Blackburst or tri-level sync (genlock) reference input
Serial numbering 64-bit unique ID per card
LTC Input Support of LTC companion card for Analog LTC (ST12-1) capture
Hardware Processing
Video Signal Modes SDI Single-link 4:2:2 10-bit, dual-link 4:2:2 10-bit - DVB-ASI Transport Stream (MPEG-2, H.264, HEVC/H.265 or JPEG2000 compliant transport stream)
Scalers 4x thumbnail scalers
CSC user programmable on inputs and outputs
Video Interfaces
Video Interfaces 3Gbps SDI (ST 424) Level A and Level B-DL (ST 425-1),
Dual Link 3G-SDI (ST 425-3),
Quad Link 3G-SDI (ST 425-5),
HD-SDI (ST 292),
Dual Link HD-SDI (ST 372),
SD-SDI (ST 259)

DVB-ASI at 270Mb/s (CENELEC/DVB standard EN50083-9). 75 Ohm interface.
Video Formats SD : 625i50 (PAL), 525i59.94 (NTSC)

HD 1280x720 : 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24 ,720p23.98

HD 1920x1080 : 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60 A/B, 1080p59.94 A/B, 1080p50 A/B, 1080p60, 1080p59.94, 1080p50.

2K 2048x1080 : 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080p60, 1080p59.94, 1080p50, 1080p48, 1080p47.952

4K 3840x2160 or 4096x2160, in 8 or 10-bit, 2 Sample Interleave or Square Division : 2160p60, 2160p59.94, 2160p50, 2160p30, 2160p29.97, 2160p25, 2160p24, 2160p23.98

TS-ASI (Transport Stream over ASI). Max bitrate of 213,72 Mbps per ASI channel.
Audio formats Embedding or de-embedding of up to 16 digital audio channels per HD-SDI link or up to 32 digital audio channels per 3G-SDI link. (ST 272M and ST 299-x)
Ancillary data ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed captions)
