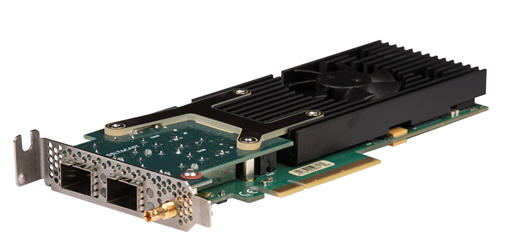

Compact single channel IP ST2022-6 card with TICO support

DELTA-ip-ST2022-6 is a dual-port 10GbE card. The main port supports up to three 3G/HD/SD SDI channels embedded in ST2022-6 datagrams with optional support for FEC streams as per ST2022-5, while the second 10GbE port is used for seamless protection switching of datagrams as per ST2022-7.

UHD formats are supported thanks to TICO compression.

The DELTA-ip-ST2022-6 is the ideal solution for industrial applications, encoders, video servers, and many other products where the reliability is not an option.

It can be freely re-flashed as an input or an output card.

This card can be delivered with a passive heat sink, please contact us for further details.

Specifications

Hardware features
Bus Interface PCIe Gen2 x8
Form Factor Low-profile, half-length PCIe
Connectors Dual-input 10GbE SFP+
Sync Input Blackburst or tri-level sync (genlock) reference input
Serial numbering 64-bit unique ID per card
LTC Input Support of LTC companion card for Analog LTC (ST12-1) capture
Hardware Processing
Video Signal Modes Video transport as per SMPTE ST2022-6
Scalers 8x thumbnail scalers
CSC
Video Interfaces
Video Interfaces
Video Formats SD : NTSC 525i59.97, PAL 625i50

HD : 720p 23.98/24/25/29.97/30/50/59.94/60

HD : 1080i/p/psf 23.98/24/25/29.97/30/50/59.94/60

HD : 2048p 23.98/24/25/29.97/30/47.95/48/50/59.94/60

UHD : 2160p (3840x2160 & 4096x2160) 23.98/24/25/29.97/30/50/59.94/60
Audio formats Embedding or de-embedding of up to 16 digital audio channels per HD-SDI link or up to 32 digital audio channels per 3G-SDI link. (ST 272M and ST 299-x)
Ancillary data ST 291, ST 272/299 (Audio), ST 12-2 (VITC), ST 352 (payload ID), ST 334 (closed captions)
